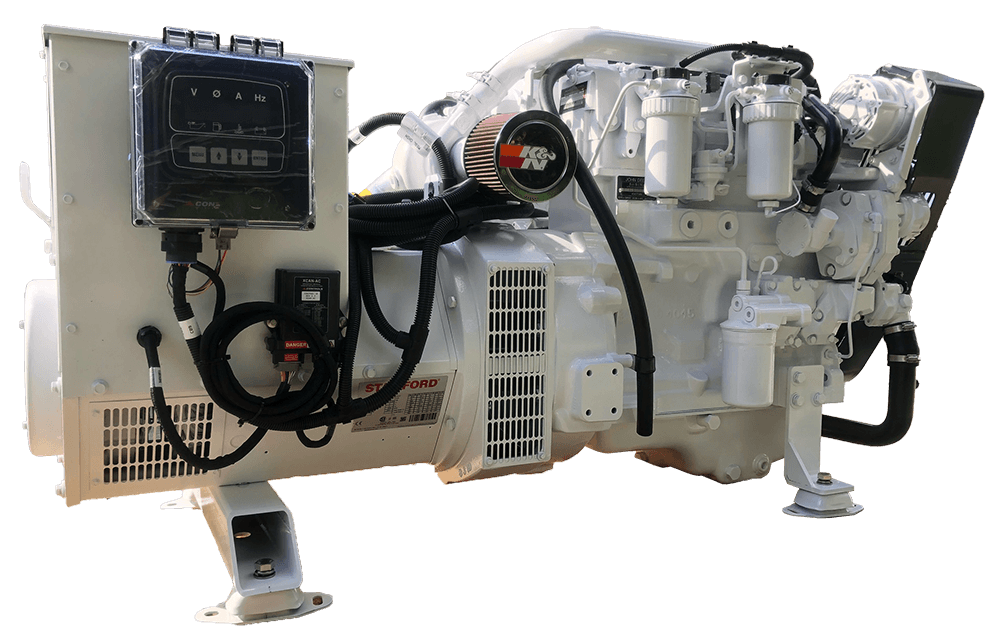

JD4-65.0KW
60 Hertz
Standard Features
✓ Single bearing brushless generator
✓ +/– 1% Solid-state voltage regulation
✓ Low 1,800 RPM operating speed
✓ Automatic engine shutdown for low oil and high coolant temperature
✓ Freshwater heat exchange cooling
✓ Zinc anode in heat exchanger
✓ Water-cooled manifold and Stainless Steel exhaust elbow
✓ Direct drive seawater pump
✓ Primary fuel filter
✓ Secondard fuel filter
✓ Air intake Cleaner / Silencer
✓ 12-Volt DC start / Battery charging alternator
✓ 4-Point isolation motor
✓ Awl-Craft 2000 urethane finish
✓ 5-Year Limited Warranty
Optional Equipment
- Remote Controls Including Electronic Control Panel With Display For All Engine And Generator Functions
- Three Phase Output
- 24-Volt DC Start
- Dedicated Motor Starting Generator Windings
- Stainless Steel Drip Pan
- Powder Coated Aluminum Enclosure
- Spare Parts Kit
Specifications
| Specification | Details |
|---|---|
| Hertz | 60HZ |
| Model | JD4-65.0 |
| Engine | John Deere 4045TFM |
| Cu. In. Displacement | 276 |
| Bore x Stroke | 4.19 x 5.00 (in.) |
| Dims (LxWxH) | 65 x 32 x 38 (in.) |
| Enclosure Dims (LxWxH) | 68.5 x 34.5 x 41 (in.) |
| Weight (lbs.) | 2375 |
| Output (volts) | 120/240 Single phase |
| Output (amps) | 542/271 |
| Output (watts) | 65,000 |
| Fuel Consum. @ 50% load | 2.6 GPH |
| Fuel Consum. @ 100% load | 4.8 GPH |
| Exhaust Dia. | 3.5 in. |
