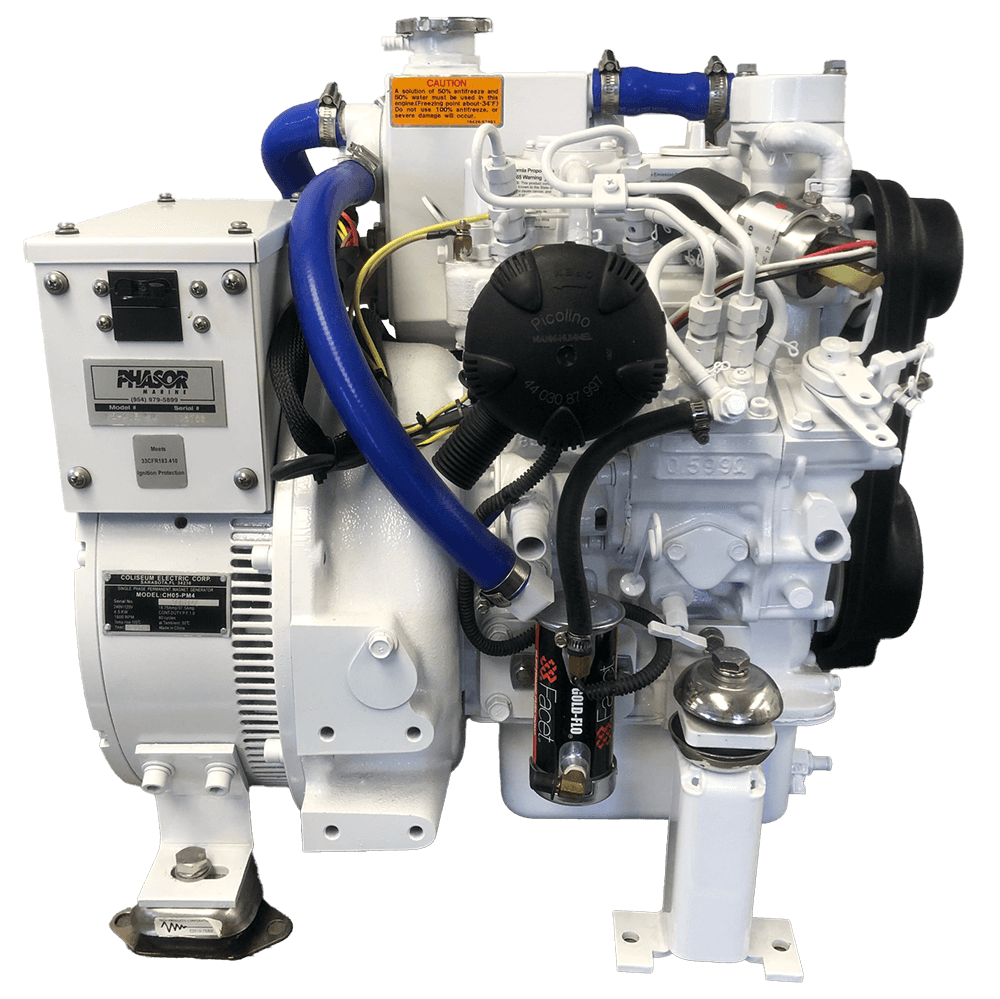

K2-4.5PMG
60 Hertz
Standard Features
✓ Kubota Diesel Engine
✓ Single bearing direct coupled generator
✓ Low 1,800 RPM operating speed
✓ Safety shutdown system for high coolant temperature or low lube oil pressure
✓ Single series circuit control system with no printed circuit boards – tinned wiring
✓ Freshwater double pass heat exchanger
✓ Water-cooled exhaust manifold with removable intergral Cupro-Nickel heat exchanger core
✓ Zinc anode in heat exchanger
✓ Stainless Steel exhaust elbow cast
✓ Gear-driven raw water pump
✓ 4-Point isolation mounts S/S
✓ Molded blue silicone water hoses with
✓ Stainless Steel AWAB clamps
✓ Air intake Cleaner / Silencer
✓ Main Line Circuit breaker
✓ Spin-on lube and fuel filters
✓ Belt guard
✓ 5-Year Limited Warranty
Optional Equipment
- Stainless Steel Drip Pan
- Sound Insulation Blanket
- Powder Coated Aluminum Sound Enclosure
- Spare Parts Kit
Specifications
| Specification | Details |
|---|---|
| Hertz | 60HZ |
| Kubota Model | Z602-E4B |
| Cylinders | 2 |
| Cu. In. Displacement | 36.55 |
| Bore x Stroke | 2.83 x 2.90 (in.) |
| Dims (LxWxH) | 21 x 17 x 22.75 (in.) |
| Enclosure Dims (LxWxH) | 26 x 22 x 24.5 (in.) |
| Weight (lbs.) | 290 |
| Output (volts) | 120/240 |
| Output (amps) | 38/19 |
| Output (watts) | 4,500 |
| Exhaust Dia. | 2 in. |
| Raw water Dia. | 3/4 in. |
| Fuel Line Dia. | 5/16 in. |
| Return Line Dia. | 3/16 in. |
