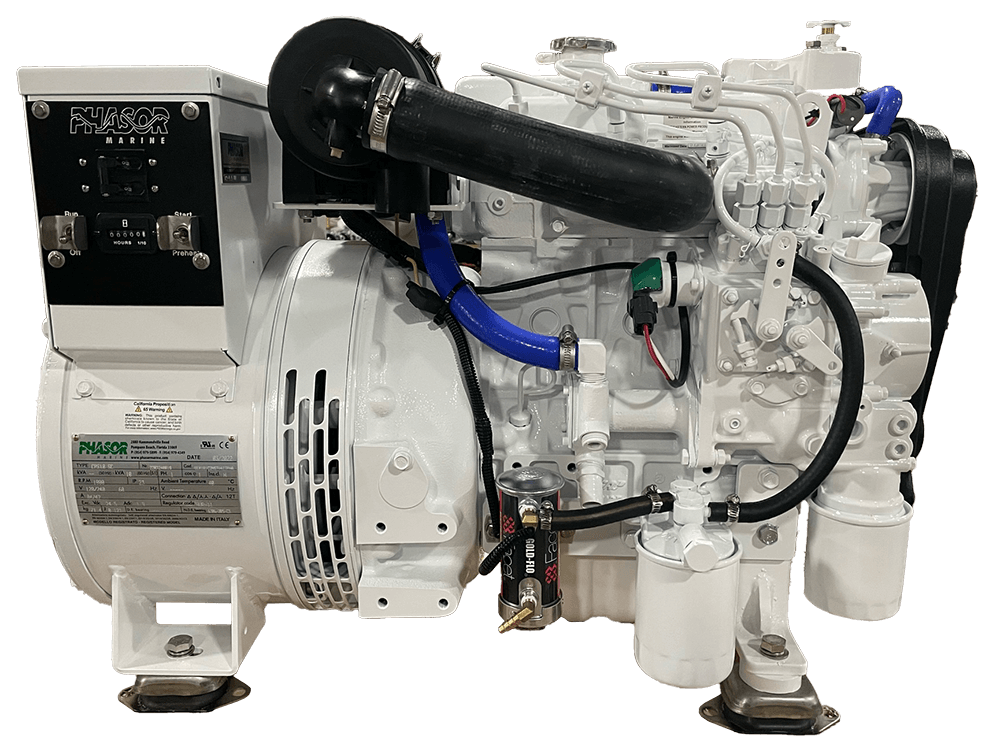

K3-9.5KW
60 Hertz
Standard Features
✓ Kubota Diesel Engine
✓ Single bearing direct coupled brushless generator
✓ +/– 1% Solid-state voltage regulation
✓ Low 1,800 RPM operating speed
✓ Safety shutdown system for high coolant temperature or low lube oil pressure
✓ Single series circuit control system with no printed circuit boards – tinned wiring
✓ Freshwater double pass heat exchanger
✓ Water-cooled exhaust manifold with removable intergral Cupro-Nickel heat exchanger core
✓ Zinc anode in heat exchanger
✓ Stainless Steel exhaust elbow cast
✓ Gear-driven raw water pump
✓ 4-Point isolation mounts S/S
✓ Molded blue silicone water hoses with Stainless Steel AWAB clamps
✓ Air intake Cleaner / Silencer
✓ Spin-on lube filter
✓ Secondary 5 Micron fuel filter
✓ Self-bleed fuel system
✓ USCG approved fuel lines
✓ Electric fuel transfer pump
✓ Forged brass oil drain valve with safety lock
✓ Awl-Craft 2000 urethane finish
✓ 5-Year Limited Warranty
✓ Belt guard
✓ Circuit breaker - main line
✓ 5-Year Limited Warranty
Optional Equipment
- Remote Start / Stop – 20ft. Harness
- DC Gauge Panel – 20ft. Harness
- Stainless Steel Drip Pan
- Three Phase Generator Output
- 24-Volt Starting System
- Sound Insulation Blanket
- Powder Coated Aluminum Enclosure
- Spare Parts Kit
Specifications
| Specification | Details |
|---|---|
| Hertz | 60HZ |
| Kubota Model | D1005-E4BG |
| Cylinders | 3 |
| Cu. In. Displacement | 68.5 |
| Bore x Stroke | 3.07 x 3.09 (in.) |
| Dims (LxWxH) | 31.5 x 18 x 23 (in.) |
| Enclosure Dims (LxWxH) | 35 x 23 x 25.5 (in.) |
| Weight (lbs.) | 462 |
| Output (volts) | 120/240 |
| Output (amps) | 80/40 |
| Output (watts) | 9,500 |
| Exhaust Dia. | 2 in. |
| Raw water Dia. | 3/4 in. |
| Fuel Line Dia. | 5/16 in. |
| Return Line Dia. | 3/16 in. |
